NV-40m/mSG (Mod.1)　Single Screw Extruder

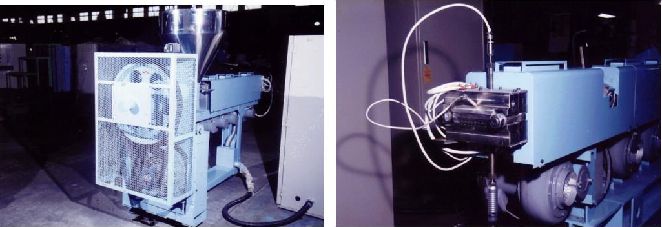

NV-40m/mSG Single Screw Extruder

Features

1 ： High Quality with Excellent Performance
2 ： Versatility with Easy Handling
3 ： Sleek design for Long Lasting Life
4 ： Bench mark model for 40mm Single Screw

Standard Specifications

1 Type General Purpose Single Screw Extruder
2 Capacity 50 ~ 150kg/hr(ABS)
3 Dimension 1,000mm(CH)m 2,400mm(L), 700mm(W), 1,700mm(H),
4 Weight 900kg
5
Voltage and capacity of power supply

Voltage 380 -440V, 50-60Hz, 3 phase(Standard)

Capacity 31KVA(Capacity varied by option)
6 Cylinder Nitrided steel(SACM645) (Standard)
7 Screw Dulmage type L/D 36(1 vent) (Standard)


L/D 36(Non Vent) Option
8 Heater Band Heater, 1.3kw
9
Temperature Control


PID Control 5 Zone
10 RPM Screw 320
11 Main Motor 22kw 380 - 440V,


AC Fixed Speed(Standard)


AC Motor controlled by Inverter(Option)
