NRⅡ-46m/mSG (Mod.5)　Twin Screw Extruder

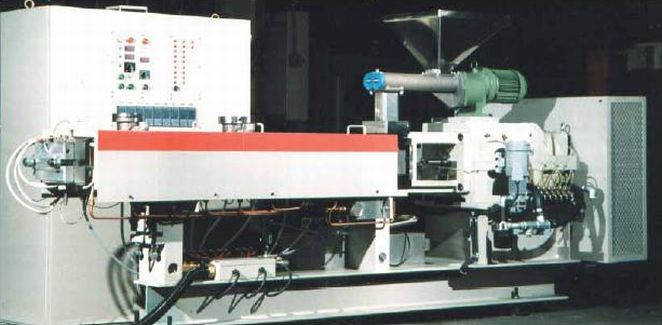

NRⅡ-46m/mSG　Twin Screw Extruder

Features

1： High Quality with Excellent Performance
2： Versatility with Easy Handling
3： Sleek design for Long Lasting Life
4： Bench mark designing for Low End range
5： Sturdy and simple for consistent operation
6： High End model with production capacity 250kg/hr ~ 430kg/hr

Standard Specifications

1 Type Co-rotated twin screw extruder
2 Capacity 250kg/hr(ABS pellet) (55kw main motor)(Standard)


430kg/hr(ABS Pellet)(90kw main motor)(Option)
3 Dimension 800mm(CH), 3,400mm(L), 1,800mm(W), 1,600mm(H),
4 Weight 2.8 ton
5 Voltage and capacity of power supply

Voltage 380 ~ 440V, 50 ~ 60Hz, 3 phase(Standard)

Capacity 88KVA(AC 55kw main motor)(Standard)


123KVA(AC 90kw main motor)(Option)
6 Barrel Nitrided steel, nitrided (Standard)


Hardness over HRC 63


L/D 40
7 Screw Segment type with Involute Spline Shaft
8 Heater Brass casted heater nine blocks 59kw
9 Temperature Control 9 Zone
10 RPM 50 ~ 440 rpm(Main motor 55kw) (Standard)


50 ~ 700 rpm(Main motor 90kw) (Option)
11 Main Motor 55kw (Standard)


90kw (Option)


380 - 440V(Standard)

Type AC motor controlled by Inverter
