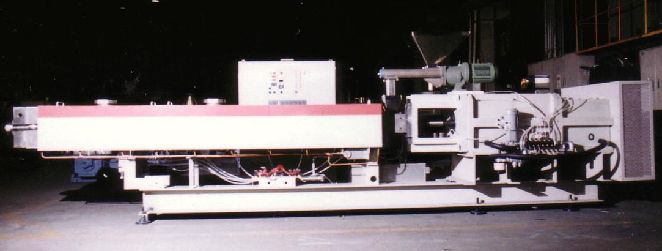

NRⅡ-104m/mSG (Mod.1) Twin Screw Extruder

Twin Screw Extruder NRⅡ-104m/mSG


1 High Quality with Excellent Performance
2 Versatility with Easy Handling
3 Sleek design for Long Lasting Life
4 Bench mark designing for High End range
5 Sturdy and simple for consistent operation
6 High End model with production capacity 1,500kg/hr ~ 3,000kg/hr
7 Featuring Industrial beauty as Japan-make
8 High Reliability
9 Ultra High Evaluation model in 50 years
10 Best fitted to High volume of master batch compounding, profiling, film and fiber production.

Standard Specifications

1 Type Co-rotated twin screw extruder
2 Capacity 1.500kg/hr(ABS pellet) (300kw main motor)(Standard)

3,000kg/hr(ABS Pellet)(600kw main motor)(Option)
3 Dimension 800mm(CH), 7,000mm(L), 2,000mm(W), 1,800mm(H),
4 Weight 12.0 ton
Voltage and capacity of power supply

Voltage 380~ 440V, 50~ 60Hz, 3 phase(Standard)

Capacity 420KVA(AC 300kw main motor)(Standard)

720KVA(AC 600kw main motor)(Option)
6 Barrel Nitrided steel, nitrided (Standard)

Hardness over HRC 63

L/D 40
7 Screw Segment type with Involute Spline Shaft
8 Heater Brass casted Heater nine blocks 59kw
Temperature Control

9 Zone
10 RPM 50 ~ 545 rpm(Main motor 90kw) (Standard)

50 ~ 545 rpm(Main motor 300kw) (Option)
11 Main Motor 300kw(Standard)


380 - 440V(Standard)

Type AC motor controlled by Inverter
