NV-100m/mSG (Mod.2)　Single Screw Extruder

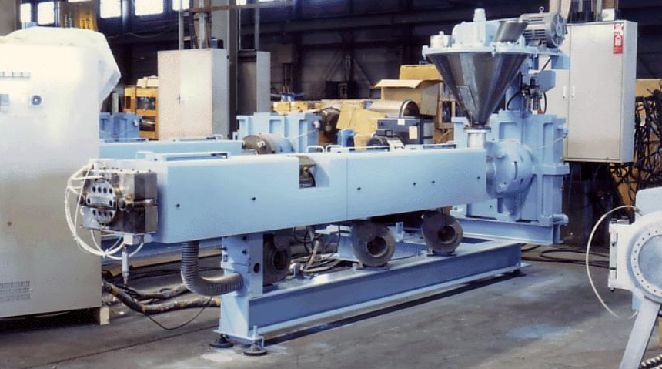

NV-100m/mSG Single Screw Extruder

Features

1 ： High Quality with Excellent Performance
2 ： Versatility with Easy Handling
3 ： Sleek design for Long Lasting Life
4 ： Bench mark model for 100mm Single Screw
5 ： High Reliability
6 ： Best Selling model in 50 years

Standard Specifications

1 Type General Purpose Single Screw Extruder
2 Capacity 300 ~ 500kg/hr(ABS)
3 Dimension 820mm(CH)m 4,300mm(L), 1,900mm(W), 1,900mm(H),
4 Weight 3.5 ton
5
Voltage and capacity of power supply

Voltage 380 -440V, 50-60Hz, 3 phase(Standard)

Capacity 131KVA(AC 90kw main motor)(Standard)
6 Cylinder Nitrided steel(SACM645) (Standard)
7 Screw Dulmage type L/D 32(1 vent) (Standard)
8 Heater Band Heater, 3.0kw
9
Temperature Control


PID Control I Zone
10 RPM Screw 162
11 Main Motor 90kw Fixed Speed (Standard)


90kw Inverter controlled (Option)


380 - 440V(Standard)
