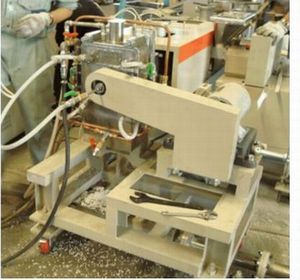

Die Face Cutter for NRII-46

Die Face Cutter for NRII-46






Features

1 High Quality with Excellent Performance
2 Sleek design for Long Lasting Life
3 Bench mark designing for Low End range
4 Stardy and simple for consistent operation

Standard Specifications

1 Cut Method Center cut
2 Motor 200/220V 2.2kw - 4P
3 Drive V pulley and V belt
4 Number of blade


2 pcs
5 RPM of cutter 0 - 1,750 rpm, controlled by invertor
6 Casing Water cooling

  Installation of casing : Fixed to gutter of die
  Diameter of cooling water pipe: 3/8 B  (input, output)

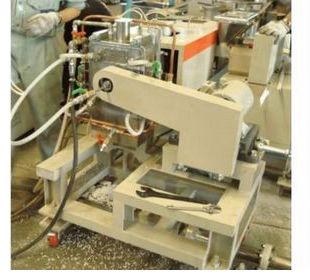

Die Face Cutter for NRII-75&NV100

Die Face Cutter for NRII-75&NV100






Features

1 High Quality with Excellent Performance
2 Sleek design for Long Lasting Life
3 Bench mark designing for Low End range
4 Stardy and simple for consistent operation

Standard Specifications

1 Cut Method Center cut
2 Motor 200/220V 2.2kw - 4P
3 Drive V pulley and V belt
4 Number of blade


2 pcs
5 RPM of cutter 0 - 1,475 rpm, controlled by invertor
6 Casing Water cooling

  Installation of casing : Fixed to gutter of die
  Diameter of cooling water pipe: 3/8 B  (input, output)
